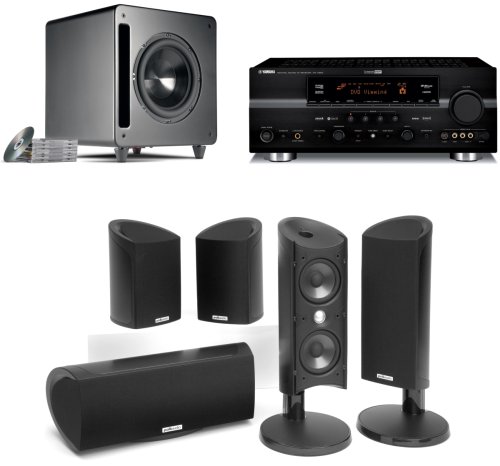

Yamaha RX-V663
|
Yamaha RX-V663 Receiver Specifications |
|
| Channels | 7 |
| RMS Output Power (20Hz – 20kHz) | 95W x 7 |
| RMS Output Power (1kHz) | |
| Total Power (20Hz – 20kHz) | 665W |
| Dolby TrueHD | • |
| Dolby Digital EX/ Dolby Pro Logic IIx | • (Plus) |
| DTS-HD Master Audio | • |
| DTS-ES Discrete 6.1 | • |
| DTS 96/24 / DTS Neo:6 | • |
| Pure Direct | • |
| HD Radio Tuner | |
| iPod Compatibility | • (With Optional YDS-10) |
| Bluetooth Compatibility | • (With Optional YBA-10) |
| Compressed Music Enhancer | • |
| Neural Surround | • |
| XM HD Surround | • |
| SRS (Circle Surround II) | |
| THX Processing | |
| Sirius Satellite Radio Ready | • |
| XM Satellite Radio Ready | • |
| HDMI (In/Out) | (2 / 1) Ver. 1.3 |
| i.Link (IEEE 1394) | |
| Component Video (In/Out) | (3 / 1) |
| A/V Inputs (S-Video) | 5 (All S-Video) |
| Digital Inputs/Outputs [O: Optical, C: Coaxial] | (O: 3, C: 2) |
| Front A/V with Digital Input | • (S-Video / Optical) |
| Front Mini Input for Portables | |
| Front USB Input For Flash Memory Drives | |
| LAN Terminal RJ-45 Network Connection | |
| D/A Conversion | 192 kHz / 24 bit |
| Surround Programs | 17 |
| Night Listening Enhancer | |
| DCDi Processing | |
| Time Base Corrector | • |
| HDMI Up Conversion | • |
| Component Video Up Conversion | • |
| S-Video Up Conversion | • |
| Dialogue Lift | • |
| YPAO (w/Optimizer Microphone) | • |
| On-Screen Display | • |
| Assignable Power Amp | • |
| Zone Speaker Terminals | • |
| Zone 2 Output | • (Audio Only) |
| Zone 3 Output | |
| Zone 4 Output | |
| Zone Power Switching | • Main/ Zone2 (Front Panel) |
| Zone Remote Control | |
| RS-232C Interface | |
| +12V Trigger Output | • |
| IR Ports | • |
| Receiver Manager Software | |
| Speaker A, B or A + B | • |
| Selectable Subwoofer Crossover | • |
| Multi-Channel Decoder Inputs | 8-Channel |
| Pre-Out All Channels | • |
| Learning Remote Capability | Preset |
| Macro Command Capability | |
| Product Dimensions (W x H x D) | 17-1/8″ x 6-3/4″ x 15-1/2″ |
| Product Weight (lbs.) | 26.2 |
| Shipping Dimensions (W X H X D) | 21-13/16″ x 10-5/8″ x 19-13/16″ |
| Shipping Weight (LBS) | 32 |
Polk Audio RM20 5.1 Home Theater Speaker System Specifications
| Driver Complement | |
| Fronts | |
| Midrange | 2 – 3-1/2″ Diameter (8.89cm) Polymer composite cone |
| Tweeter | 1 – 3/4″ Diameter (1.91cm) Silk/Polymer composite dome |
| Surrounds | |
| Midrange | 1 – 3-1/2″ Diameter (8.89cm) Polymer composite cone |
| Tweeter | 1 – 3/4″ Diameter (1.91cm) Silk/Polymer composite dome |
| Center | |
| Midrange | 2 – 3-1/2″ Diameter (8.89cm) Polymer composite cone |
| Tweeter | 1 – 3/4″ Diameter (1.91cm) Silk/Polymer composite dome |
| Subwoofer | |
| Subwoofer | 1 – 12″ Diameter (30.48cm) |
|
|
|
| Electrical | |
| Overall Frequency Response |
28Hz – 24kHz |
| Lower -3dB Limit | 32Hz |
| Upper -3dB Limit | 20kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 8 ohms |
| Recommended Amplifier Power | 20 – 150 w/channel |
| Efficiency | 89 dB |
| Dynamic Power Output | 200 watts |
| Available in 220V? | Yes |
Polk Audio RM101
Polk Audio RM101 Satellites Specifications
| Driver Complement | |
| Midrange | 1 – 3-1/2″ Diameter (8.89cm)Polymer composite cone |
| Tweeter | 1 – 3/4″ Diameter (1.91cm)Silk/Polymer composite dome |
|
|
|
| Electrical | |
| Overall Frequency Response | 95 Hz – 24 KHz |
| Lower -3dB Limit | 130 Hz |
| Upper -3dB Limit | 20 kHz |
| Nominal Impedance | 8 ohms |
| Minimum Impedance | 8 ohms |
| Recommended Amplifier Power | 10 – 125 w/channel |
| Efficiency | 89 dB |
| Inputs | 5 way Binding Posts |
|
|
|
| Dimensions | |
| Cabinet Size | 7-1/16″ H x 4-3/8″ W x 5-1/16″ D(17.94cm H x 11.11cm W x 12.86cm D) |
| Mounting Options | keyhole slot plus threaded insert for optional articulating bracket |
| Enclosure Type | Vented via Power Port |
|
|
|
| Shipping/Other | |
| Product Weight | 3.00 lbs. (1.36kgs) |
| Shipping unit: | each |
| Total Shipping Weight | 4.00 lbs. (1.81kgs) |
| Speaker Warranty | 5 years parts and labor (original purchaser) |
| Accessories (comes with) | fixed wall bracket |
| Accessories (recommended) | swivel wall bracket |
Polk Audio DSW PRO 400 Powered Subwoofer Specifications
| Driver Complement | |
| Subwoofer | 1 – 8″ Diameter (20.32cm) Downward Firing Slot Port |
|
|
|
| Loud & Low Specs(CEA2010) | |
| Low | 114 db |
| Ultra | 91 db |
|
|
|
| Electrical | |
| Overall Frequency Response | 25Hz-160Hz |
| Lower -3dB Limit | 30Hz |
| Upper -3dB Limit | 125Hz |
| Inputs | LFE, Line In, Speaker Level In |
| Outputs | Line Out, Speaker Level Out |
|
|
|
| Dimensions | |
| Cabinet Size | 14-5/8″ H x 13-3/4″ W x 13-3/4″ D (37.15cm H x 34.92cm W x 34.92cm D) |
|
|
|
| Subwoofer Amplifier Specs | |
| Power Output | 180 watts Continuous Average Output |
| Dynamic Power Output | 360 watts |
| Power Requirements | 120 or 220 V Capable |
| Available in 220V? | Yes |
|
|
|
| Shipping/Other | |
| Product Weight | 30.00 lbs. (13.61kgs) |
| Shipping unit: | 35.00 |
| Speaker Warranty | 5 years parts and labor (original purchaser) |
| Subwoofer Amplifier Warranty | 3 years |
| Accessories (comes with) | Remote Control |
| Accessories (recommended) | Grille for cabinet mounting (available soon) |
